Cheap Computer Controlled TV Rotor for AMSAT Satellites And Includes Free Satellite Tracking With PstRotator and the USB-UIRT

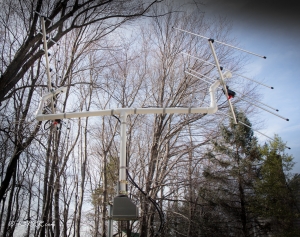

K3RRR Ham Radio Satellite Antenna Array

How would you like to have a complete, cheap computer controlled rotator system for working the current 15 (soon to be at least 18) active ham radio satellites for a total cost of around $200 including rotator – with excellent satellite tracking software and rig control included for free?

Thanks to friend Robin Moseley, G1MHU, I’ve been able to finally and cheaply implement computer control tracking with my equally cheap TV rotor that I use for working the AMSAT satellites.

On top of that, I even ended up with excellent satellite tracking software, as a bonus, that actually works exactly the way it is supposed to, for no extra charge!

I know there are a lot of newbies and even a lot of oldies that might have an interest in getting on the amateur satellites – but who have been turned off by the high cost of a computer controlled antenna system. This approach might be a game changer for those with limited dollars who still want to work the birds without spending $2,000 or more on the antenna system.

Did I Mention Cheap?

You may notice the above preponderance of the word “cheap.” If you’re like me, you have so many interests that you end up with limited resources by the time you try to buy all of the necessary toys for each interest.

Ham radio has been one of my primary hobbies since I was 14 years old and probably my most enjoyable hobby that I do without my wife.  Since my wife has zero interest in ham radio, for some reason, she seems to prefer that we allocate more resources toward those things that she and I do together. Go figure.

Then and Now – My Ham Radio Satellite Setup

Over two dozen years ago I had a full set up for working the ham radio satellites including big circularly polarized beams, mast mounted preamps and a Yaesu G 5400 AZ EL rotor.

Now as I get back into this aspect of the hobby, I am on a tighter, semi-retired budget and didn’t want to spend $1,000 for another computer controlled Yaesu rotor system to move around less than 10 pounds of antenna.

Channel Master 9521A Antenna Rotator

Instead, I’m currently using two small, linear polarized Diamond antennas that have a total cost of $130 ( the A430S10 70 cm 10 element element Yagi and the A144S5 two meter five element Yagi), $120 Channel Master 9521A Antenna TV Rotor (see above photo) and about $20 of PVC as you can see in the photo.

(Yes, I know that this rotor is only for azimuth and not for elevation also. As it turns out, if you attach your antennas with a fixed elevation of about 15°, you can work 70% or more of the satellite passes that come your way. See the fantastic, detailed PS below written by Bob, WB4APR for details on this.)

Note: This whole approach will work with just about any infrared controlled rotator. It does not have to be the Channel Master 9521A Antenna TV Rotor

Note this also works well for non-satellite computer controlled rotor applications like TV rotators for HF spider antennas, other small antennas like VHF/UHF beams, etc.

K3RRR Ham Radio Satellite Antenna Array

The nice thing about this particular rotor is that it is infrared controlled. Infrared is nice but the question is how to computer control this rotor?

Cheap Computer Control of My Cheap TV Antenna Rotor – PstRotator and the USB-UIRT

Friend Robin recommended that I check out a program called PstRotator. I chatted with the developer, Codrut YO3DMU, in Romania and he said all I needed was his software and the magic hardware that made all this work:  the Jon Rhees USB-UIRT USB Universal Infrared Receiver and Transmitter that cost me about $65 delivered.

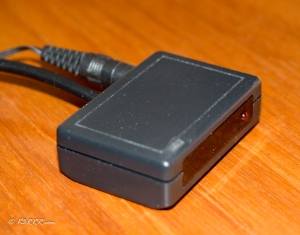

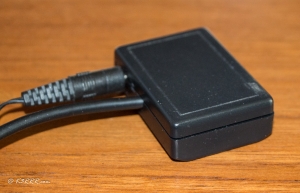

USB-UIRT At K3RRR

One nice thing about the USB – UIRT is that it allows for an external IR emitter. As it turns out, I happen to have one of these left over from an old Windows Media Center remote that worked fine for this application after I attached it with a little rubber cement to the Channel Master 9521A Antenna TV Rotor control.

The great thing is that the USB – UIRT is totally plug-and-play once you download the drivers from the USB – UIRT website. There is no programming or software involved with the gizmo.

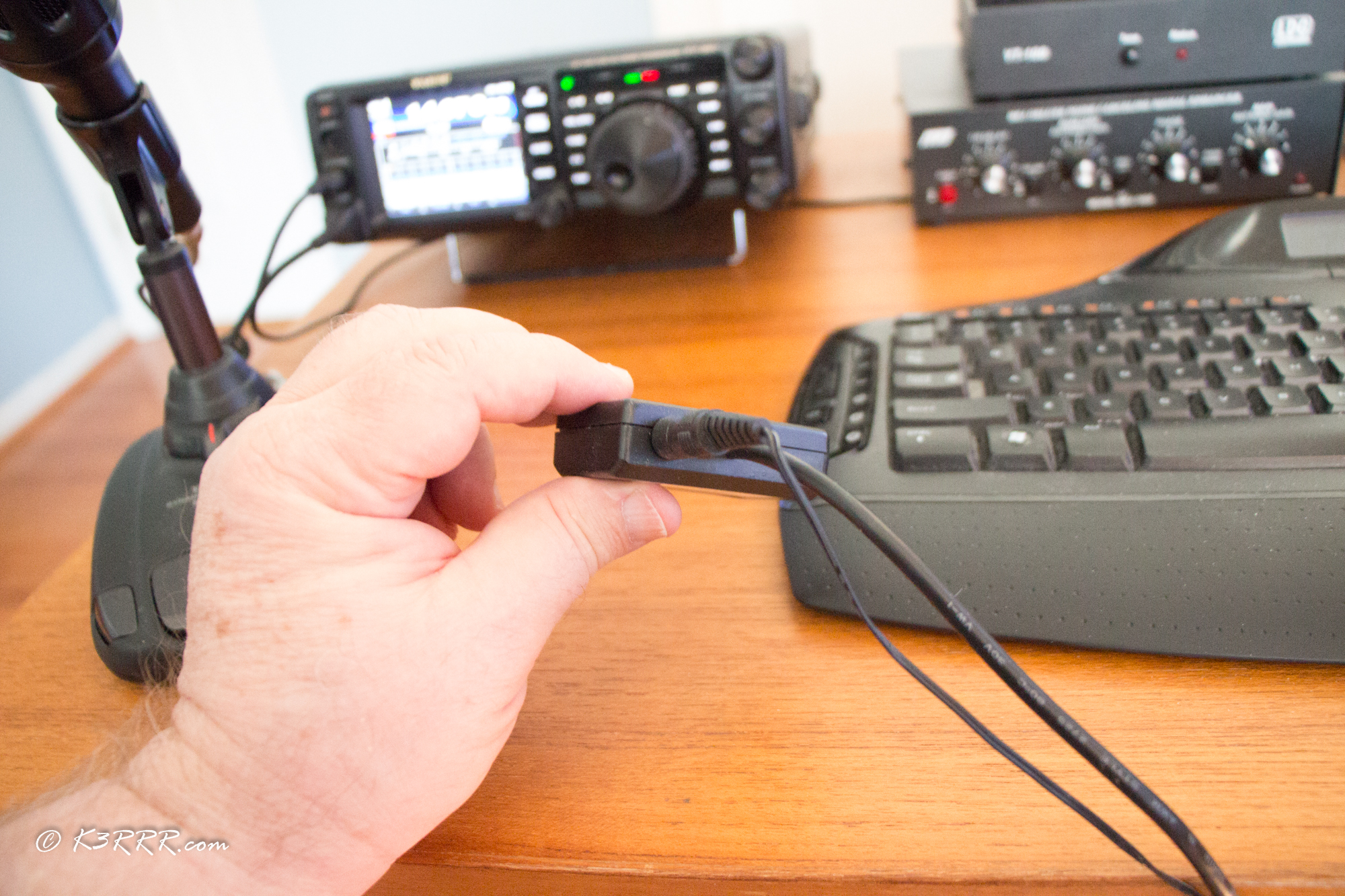

USB-UIRT At K3RRR With External IR Emitter

Add to this the €20 (about $21) for Codrut’s PstRotator software and the combination of this hardware and this software was as close to plug-and-play as I’ve seen in a while.

On top of this, as it turns out, PstRotator also includes its own Satellite Tracking Module for no extra charge!

For setup, you will need to go to the set up procedure with PstRotator once you download the software.

(He also offers a second program that is included in the same license called PstRotatorAZ that is intended just for azimuth rotors. I did make the mistake of assuming that that was the right one for me since I only have an azimuth rotor. That was wrong. Because we want to track satellites, you need to choose the non-azimuth version called simply PstRotator.)

For set up: Choose Setup/AZ Controller and then choose USB-UIRT Channel Master at the bottom of the list.

If you want to use the built in Satellite Tracking software, use the drop down menu Tracker and then select Satellites at the top of the list right below Sun. That will bring up the Satellite Tracking software shown below:

PstRotator Software with Free Satellite Tracking Software

To set up the Satellite tracking module, click on TLE and choose your dataset such as amsat.org then go to the drop down menu Name to choose a satellite such as Jas-2 (FO-29)….then highlight which setting you want for each satellite:

(e.g. FO29:435850,145951,USB,LSB,Rev,0,0) ….

then click add/modify (this step is easy to miss.) Once you have done this, then the satellite shows up on the main Satellite Tracking display on the right.

PstRotator Software with Free Satellite Tracking Software



Oh, one other thing: If you have no other software for rig control such as Ham Radio Deluxe, the install subdirectory that comes with PstRotator includes Omni Rig which is pretty trivial to set up.

That’s all there is to it! PstRotator with the USB – UIRT interface makes a great combo for cheaply and easily getting on the birds.

Conversely, I have been struggling for months to try to get the Satellite Tracking Module of the paid version of Ham Radio Deluxe to work right – especially with the linear birds since the manual tuning for HRD does not operate correctly. (It still doesn’t – although I understand they are finally starting to address the Satellite Tracking Module with some increased priority.)

Likewise, I’ve used SatPC32 which is directly linked with AMSAT. It’s a good program but I find it overly complex and I don’t believe that it’s been updated since 2013 – which means that it does not include support for my new Yaesu FT 991.

PstRotator – Highly Recommended for Your Satellite Tracking Needs

Instead, I find that PstRotator just works. No hassles, no complexities and it seems to work equally well with the linear birds as well as the FM birds. It is now easy for me to work the satellites with a single radio – my Yaesu FT 991.

I really wish that the Satellite Tracking Module of Ham Radio Deluxe worked just like the Satellite Module for PstRotator.

I still greatly prefer the original graphics of Simon Brown for Ham Radio Deluxe over the graphics in PstRotator. However, substance over form wins out and PstRotator is my current go to program for working the amateur satellites.

Hopefully, someday soon, the HRD folks will be able to at least mimic Codrut’s great satellite tracking software. Even if and when they do, I’ll continue to use PstRotator as my rotor control software.

Irrespectively, PstRotator with the USB – UIRT interface already works now and works right.

With at least a half dozen current ham radio satellites circling the earth that you can work and with at least two more scheduled to be launched in 2016, this is a great time for you to finally get active on the satellites!

K3RRR Ham Radio Satellite Antenna Array

73,

73 de Robert





Robert
K3RRR

PS: The photos with the snow are from what we Washingtonians call “Snowzilla” which dumped 3 feet of snow at our QTH during January 2016.

PPS: Be forewarned, when it comes to working the ham radio satellites, I sometimes feel like the quote from Apollo 13: “Jim Lovell: All right, there’s a thousand things that have to happen in order. We are on number eight. You’re talking about number six hundred and ninety-two.”

I have been playing with the satellites for years and I am now up to number ten.

PPPS: With regard to only have an azimuth rotator, here is a great analysis by Bob, Wb4APR

[amsat-bb] Re: Satellite Average Elevation & New Birds

Robert Bruninga bruninga at usna.edu
Wed Dec 18 06:16:56 PST 2013

The geometry of LEO satellites has not changed. The optimum angle for a fixed tilt modest gain YAGI is about 15 degrees (assuming you have a decent horizon).

See: http://aprs.org/LEO-tracking.html

That said, if your antenna is seriously blocked from all directions below say 10 degrees, then you are not going to hear anything down there anyway. So bump it up to say 20 or 25. But 70% of all LEO passes are below 22 degrees so just recognize that you are giving up most of your operations.

Bob, Wb4aPR

—–Original Message—–
From: amsat-bb-bounces at amsat.org [mailto:amsat-bb-bounces at amsat.org] On
Behalf Of Clayton Coleman
Sent: Tuesday, December 17, 2013 8:35 PM
To: Ted
Cc: AMSAT-BB
Subject: [amsat-bb] Re: satellite average elevation & new birds

Just a short time ago after I moved into a new shack, I operated for a month with an Elk at 15 degrees on a tripod. Armstrong rotor. I worked all the current satellites right up through the first week we had AO-73’s transponder available.

Pay close attention to comments WB4APR has made about setting the fixed elevation based on the lowest horizon you can work. For example, if it takes ten degrees for you to clear a mountain, twenty five degrees is probably okay. If you have a clear horizon view, fifteen is probably okay. The goal is to have as much gain available at your lowest elevation to increase your available range. YMMV

PS A preamp goes a long way in a fixed elevation setup.

73
Clayton
W5PFG

On Dec 17, 2013 7:24 PM, “Ted” <k7trkradio at charter.net> wrote:

> I’m kind of looking for an update from Bob, but can’t find his email right now…
>
> But the question is, in view of what appears to be some renewed interest in working the new cubesats, et al, is asking Bob to comment on his earlier thoughts on using antennae at fixed elevations. For me, I’m using my Elk on a Rat Shack rotor at a fixed el per Bob’s recommendations. (I’m still struggling with PCSAT32…!!!%^&*!!) but, this antenna set up is very cost effective and seems to perform pretty well.
>
> For example, Joel Black has asked for some advice in an earlier posting. My concern is that new operators or those returning run out and spend a bunch of $$$ on a new setup. No one knows how long the current crop will last or if a new crop is in the future, so probably some caution on the Visa is warranted.
>
> Just asking (and especially Bob)
>
> 73, Ted
> K7TRK
>
>
> —–Original Message—–
> From: amsat-bb-bounces at AMSAT.Org [mailto:amsat-bb-bounces at AMSAT.Org]
> On Behalf Of Bob Bruninga
> Sent: Tuesday, April 12, 2011 8:23 AM
> To: amsat-bb at AMSAT.Org
> Subject: [amsat-bb] Re: satellite average elevation
>
> > we used a horizontally polarized yagi fixed at 30 degrees above the horizon. That worked very well..
>
> Thanks for the confirmation. Yes, elevation rotation is simply not needed at all for LEO spacecraft and modest beams. A mild, fixed tilt modest beam is just perfect.
>
> But, the “30 degree” angle myth is very pervasive throughout amsat, whereas, the optimum angle is more like 15 degrees.
>
> A 30 degree up-tilt gives up too much gain (-3 dB!) on the horizon where signals are weakest and where satellites spend most of their time, and puts the gain in an area of the sky where the satellite is already 6 dB stronger and is rarely there (giving you max beam gain where you need it least).
>
> If you look at the sketches on the web page, the optimum angle is more like 15 degrees up-tilt. It preserves max gain on the horizon within 1 dB (where it is needed most) and focuses the breadth of its gain on the area of the sky where the satellites spend something like 95% of their time. For the missing 5%, the satellite is right on top of you and almost 10 dB stronger without any beam at all. Oh, and the 15 degree up-tilt beam is also perfect for Terrestrial operations as well.
>
> See the sketch on: http://aprs.org/rotator1.html
>
> In some future life, if we ever get back to HEO’s and huge OSCAR arrays, then elevation rotors have a place. These high-gain beams have such narrow gain patterns, that higher precision tracking is a must. (Though it is complete overkill for LEO’s).
>
> Using these OVERKILL arrays for LEO’s adds significant complexity to LEO operation requiring higher precision tracking, elevation rotors, better timing, fresher element sets and automated operation.
>
> Using a TV rotator and 15 degree fixed tilt beam is much more forgiving…
>
> Bob, Wb4APR
>
